Polyurethane foam is one component, curing with moisture in air, expanding while curing, semi-rigid in aerosol form for installation, grouting and insulation material.
Flexible Polyurethane Foams are used mainly for assembly of doors and windows, infilling applications, sound and heat insulations, waterproof barriers and insulation against fire. Polyurethane Foam reacts rapidly with moisture in the air and expands after application. Polyurethane bonds extremely well to the surfaces applied thanks to its high adhesion power.
Where are They Used?
Door and window assembly is the most effective usage areas of PU Foams. It is used for the insulation of electricity installations, hot and cold water pipes, adhesion of roofing tiles, tightness of terraces, concrete shear wall buildings, industrial roof insulation, cold storage houses and ice plants, decks of ship and yacht, filling of the voids between external thermal insulation materials, adhesion of insulation materials, filling of the voids and insulation of dry food storages.
Click for How Wooden Doors are Installed implementation video.
How is it Used?

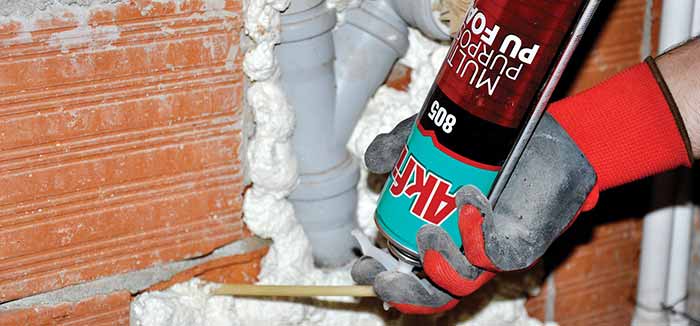

straw and pistol apparatus are screwed on the valve installed on the tin. The canister is shaken vigorously for 20 minutes and apply pressure to the trigger of pipet or pistol by holding it upside down. How strong the pressure is the output is so intensive. The foam is always applied from downward to upward for vertical surfaces. Take care that temperature of ambience and canister should remain in the range given in product TDS during application.
Click the video for how Akfix Adhesive Foam is applied
Click the video for how Akfix 962P Concrete Stone and Brick adhesive foam is used
Polyurethane foams may be divided into two sections depending on its application type and purpose.
1- PU Foams according to their Application Type;
Foams with Straw: It may be called as type of most frequent and best seller foam in the market. It is used with the straw apparatus supplied with each canister. It is preferred for filling broad voids (average 200% - 250%) due to its high expansion rate. Akfix Maximum PU Foam 805, 940, 806, 840, 820 coded products are preferred for the foam applications with straw.
Foams with Pistoles (Professional): It is used with a special application gun. The product mostly addresses the professionals. It is preferred to fill relatively narrow voids due to its low expansion rate (average %0%-60%). Akfix foams with guns having codes of 805P, 850, 840P, 820P offer an effective solution for filling small voids.
2- PU Foams in Accordance with Their Intended Use;
Foams for Filling Voids: It is standard and most frequently used foam type.
Adhesion Foams: These are the foams having increased adhesive property due to having very low (minimal) expansion rates compared to standard foams and denser polymer. Heat insulation materials like EPX, XPS, aerated concrete, brick and different construction materials like marble may be bonded with these products. For these group of products; Akfix 960, 960P, 962P coded products are preferred.
Contribution of Polyurethane Foams to Sound, Heat and Water Insulation;
It is required to apply PU Foam accurately for a good insulation.
They are used for filling voids between materials used for sound insulation, door and window voids, preventing passing of sound, heat and air, insulation the environment of the vent ducts, chimneys and climatic units protruding from the buildings and many more similar fields.
2 components rigid (strong) foams are preferred for heat insulation. Akfix 812 PU foam developed for low temperatures - like 25° C degree and Akfix 885 PU Foam for up to -25° C degree temperature ensure a perfect heat insulation even under very challenging conditions.
Water can in no way damage the foam that is properly applied and cured completely. One component polyurethane foams are preferred for external environment applications, decorative pools, attaching decorative stones to each other, preventing water leakage from joints of the mechanisms like climatic units on caravan type vehicles and antennas. Akfix polyurethane foams provide long life and effective solution for sound, heat and water insulation applications.
Frequently Asked Questions
How long the structure stands as long as it does not expose intense UV lights. UV lights cause deformation of the foam corrupting its structure. Dried foam can be protected from hazardous lights by painting surface.
Rigid foam is applied to roofs of buildings and have a perfect heat insulation capability. One living on the top floor does not feel moisture, humidity and therefore molding in case if there is no point in another place that may create thermal bridge.
There are fire resistant foams in fire classifications of B1 and B2 according to German Standard DIN 4102 and these products resist against the fire for a certain time when exposed to flame directly or remain in a place where fire continues. Akfix B1, B2 Foams resist against the fire up to 217 minutes. Akfix 820, 820P, 840, 840P coded foams are preferred among fire resistant products.
Click the video for Fire Resistance Test of Akfix B1 Fire Rated Pu Foam.
The most practical way to clean wet foam is to use foam cleaner. The foam that is contaminated around during application may be removed from all building materials, skin, textile products by spraying foam cleaner on it before it gets dried. It is possible to clean foam residues easily with Akfix 800C foam cleaner. Acetone can also be used in case where foam cleaner is not available. Cured foam can only be cleaned by mechanical ways like utility knife etc.
Click the video for How Foam Gun is Cleaned;
Which Names Are They Referred By In The World?
Names commonly used in the market; one component pu foam, polyurethane pu foam, OCF pu foam sealant, gap filling pu foam, window assembling pu foam, mounting pu foam, montage pu foam, heat insulation pu foam, sound isolation pu foam, door assembling pu foam, Insulation foam, construction foam.
